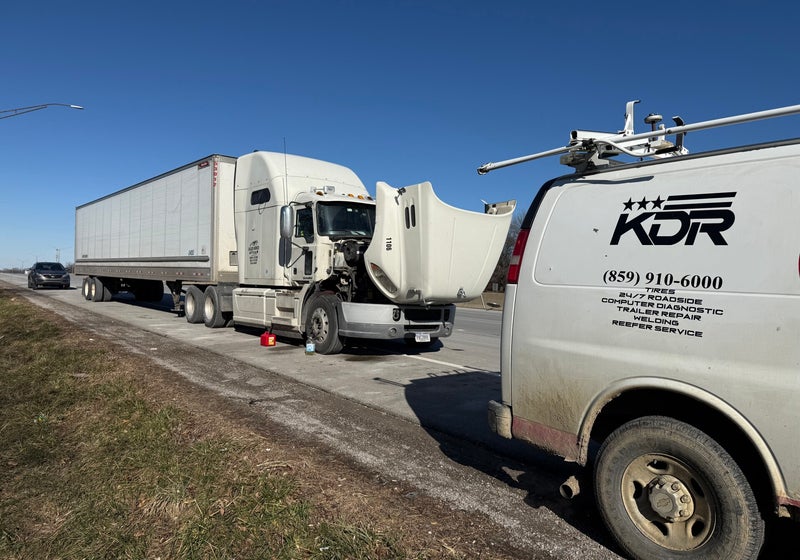

Placed Out-of-Service at the Boone County I-75 Weigh Station? Mobile Air Brake Chamber & Slack Adjuster Replacement
What happens when Kentucky Vehicle Enforcement places your tractor-trailer Out-of-Service (OOS) at the I-75 MM 168 Boone County scales, CVSA 20% defective brake rules, and how our mobile techs replace 30/30 chambers and automatic slack adjusters right on the scale lot.
Our mobile heavy-duty service trucks are stationed in Walton, KY (I-75 / I-71 Split Exits 171 & 175) with OEM dealer laptops, forced regen capabilities, commercial tires, air brake chambers, and welding gear. Typical arrival is 15–30 minutes across Boone, Kenton, Campbell, Grant & Gallatin counties.
1. Real-World Field Case Study — I-75 Northbound/Southbound MM 168.5 (Boone County Weigh Station, Walton KY)
During a CVSA Level 1 inspection at the I-75 Northbound Boone County Weigh Station (Mile Marker 168.5, just south of Walton), a 53-foot dry van and tandem-axle Freightliner Cascadia were placed Out-of-Service after inspectors found a ruptured Type 30/30 long-stroke spring brake diaphragm on the #3 drive axle and two trailer brakes exceeding the 2.5-inch pushrod stroke limit. We arrived at the inspection lot in 18 minutes. After chocking the wheels and caging the broken spring chamber safely, we cut out the seized clevis pins, installed a new Haldex GoldSeal 30/30 long-stroke (3.0-inch) sealed brake chamber, replaced a worn Meritor automatic slack adjuster on the trailer tandem, set S-cam free play to 0.5 inches at 100 PSI application pressure, and performed a timed DOT leak-down test (< 2 PSI loss in 60 seconds). The officer re-inspected the repairs on the spot and signed off the CVSA OOS clearance in 65 minutes.
When Class 8 tractors operate under heavy gross combined weight (65,000–80,000 lbs GCWR) pulling the grades between the Ohio River basin in Covington, the I-75/I-71 split in Walton, and the rolling hills toward Georgetown and Sparta, thermal and mechanical stresses expose marginal sensors, air valves, and aftertreatment components immediately. Having a mobile technician who brings dealer-level software and heavy tooling directly to the shoulder or truck stop eliminates $850–$1,500 heavy wrecker hook fees and multi-day dealership queue delays.
2. Key Roadside Symptoms & Active Fault Indicators
Drivers and fleet maintenance coordinators typically observe the following warning signs prior to or during a roadside breakdown involving Bendix / Meritor WABCO / Haldex Commercial Air Brake Systems:
- Audible air leak from the service or parking side of a Type 30/30 or 24/30 brake chamber when foot valve is depressed
- Pushrod travel exceeding 2.0 inches on standard-stroke Type 30 chambers or 2.5 inches on long-stroke (LS) Type 30 chambers
- Dragging brakes, smoking drum/hub assembly, or broken internal parking brake return spring
- Primary or secondary dash air gauge dropping below 90 PSI during highway braking
3. OEM Technical Specifications & Diagnostic Thresholds
Our ASE Master Medium/Heavy Truck technicians verify every repair against factory OEM engineering specifications rather than guessing or throwing parts at a fault code:
| Parameter / Inspection Point | OEM Engineering Specification & Field Threshold |
|---|---|
| Type 30 Standard Stroke Max Limit | 2.0 inches (51 mm) at 90–100 PSI full service brake application (CVSA OOS limit) |
| Type 30 Long-Stroke (30LS) Max Limit | 2.5 inches (64 mm) — identifiable by square air port bosses and trapezoid tag |
| Governor Cut-In / Cut-Out Spec | Cut-in >= 100 PSI (typically 105 PSI); Cut-out 125–135 PSI (FMCSA 393.50) |
| Applied Air Loss Rate Limit | Max 4 PSI/min for combination tractor-trailer with engine off and service brake held at 90+ PSI |
| Brake Lining Minimum Thickness | >= 1/4 inch (6.4 mm) at shoe center on drum brakes; >= 1/8 inch (3.2 mm) on air disc pads |
4. Step-by-Step Mobile Roadside Diagnostic & Repair Procedure
Here is the exact field protocol our mobile service truck executes on-site along I-75 Northbound/Southbound MM 168.5 (Boone County Weigh Station, Walton KY):
- Step 1: Chock tractor and trailer tires on level ground before releasing spring brakes; verify system reservoir pressure is stabilized at 100–125 PSI.
- Step 2: Measure pushrod stroke from chamber face to clevis pin center with brakes released vs. 90–100 PSI full application; compare against standard vs. long-stroke chamber tag.
- Step 3: Inspect S-cam bushings, cam rollers, and automatic slack adjuster pawl engagement; never manually back off an automatic slack adjuster to hide a worn S-cam or stretched drum.
- Step 4: Cage the parking brake spring using the integral T-bolt caging tool before unbolting chamber mounting studs, cut pushrod to exact OEM length matching existing yoke height, and torque mounting nuts to 135–155 ft-lbs.
- Step 5: Verify 90-degree angle between slack adjuster arm and pushrod at 50% stroke, then execute a DOT static and applied air loss test plus low-air warning buzzer test (must activate >= 55–60 PSI).
5. Roadside Safety & FMCSA Compliance Protocol
Whenever your commercial motor vehicle is disabled along I-75, I-71, I-275, or inside a Kentucky scale facility such as the Boone County I-75 Northbound Weigh Station (MM 168.5), comply with 49 CFR § 392.22 immediately: activate hazard warning signal flashers and place three bidirectional reflective triangles at 10 feet, 100 feet, and 200 feet to the rear of the trailer within 10 minutes. Communicate your exact highway direction, mile marker, and unit number when calling 859-910-6000 so our service truck can position its high-visibility amber/red strobes safely upstream of our work zone.
6. Frequently Asked Questions (Driver & Fleet FAQ)
Can your mobile repair trucks enter the Boone County I-75 Weigh Station inspection lot?
Yes. We work inside the I-75 NB and SB Boone County Weigh Station lots at MM 168.5 every day. Our technicians carry high-visibility PPE, wheel chocks, and stocked service trucks with Type 30/30 standard and long-stroke chambers, slack adjusters, ABS valves, and DOT air lines.
Why is manually adjusting an automatic slack adjuster a DOT violation risk?
Under CVSA criteria, if an automatic slack adjuster is out of stroke, manually turning the hex pawl is only a temporary mask; if it fails to self-adjust during three snub applications, the slack adjuster or S-cam bushings must be replaced.
About the Kentucky Diesel Repair Technical Team (E-E-A-T)
Written by Travis Miller, ASE Master Medium/Heavy Truck Tech (T1–T8, L2) and peer-reviewed by Caleb Vance, Certified DOT Part 396 Inspector. Our mobile field technicians hold ASE Master Medium/Heavy Truck certifications (T1 Gasoline, T2 Diesel Engines, T3 Drive Train, T4 Brakes, T5 Suspension & Steering, T6 Electrical/Electronic Systems, T7 Heating, Ventilation & A/C, T8 Preventative Maintenance, and L2 Electronic Diesel Engine Diagnosis), AWS D1.1 structural welding qualifications, and FMCSA Part 396 Annual Inspector credentials.
Base Operations: Walton, KY 41094 (Boone County • I-75 Exit 171 / 175) • 24/7 Dispatch: 859-910-6000
